Setup Telstra Smart Modem Gen 2 for nbn FTTN/FTTB

This guide covers the configuration of the Telstra Smart Modem Gen 2 for nbn connection types Fibre to the Node (FTTN) and Fibre to the Building (FTTB),

To set up the Telstra Smart Modem Gen 2 for nbn Fibre to the Premises (FTTP), Hybrid Fibre Coaxial (HFC), Fibre to the Curb (FTTC) or Fixed Wireless, refer to our FTTP/HFC/FTTC/Fixed Wireless setup guide for the Telstra Smart Modem Gen 2.

When you have received your activation email from us, you can proceed with configuring your modem/router to connect to the internet.

Reset your modem

Ensure your modem/router is plugged in to the wall and powered ON. Once your device has powered on, perform a HARD RESET to clear any previous ISP settings. To perform a hard reset:

• Locate the small ‘RESET’ hole on your device.
• Insert a small pin into the ‘RESET’ hole, and hold for 10 seconds, ensuring you are toggling the button inside.
• You should see your device’s lights flicker or toggle. Your device will begin the reset sequence – allow up to 5 MINUTES for this to take place.

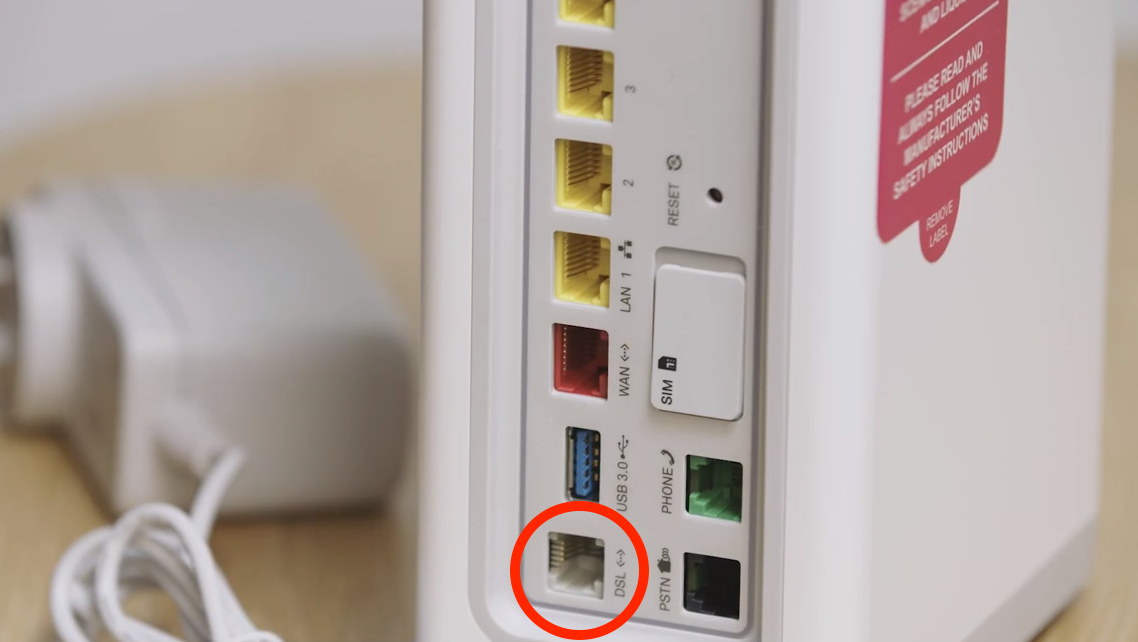

Once your device has finished performing the reset sequence, you will now need to plug an RJ-11 telephone cable from the GREY DSL port on the back of your modem/router to the telephone wall socket located in your home (as per your activation instructions).

Your device should connect to the internet straight away, however allow up to 15 minutes for this. DO NOT REMOVE THE DSL CABLE DURING THIS TIME.

If the WAN/DSL light on the front does not turn solid after 15 minutes and you have more than one socket in the home, please plug your Smart Modem into any other available telephone sockets in your home, and turn the power on and off once plugged in.

Leave your Smart Modem plugged into each telephone wall socket for up to 15 minutes until the WAN/DSL light on the modem turns solid.

If you are still offline, proceed to PPPoE configuration steps below for an alternate option to connect to the internet.

Ensure that Wi-Fi is enabled on the device you are using to access your modem (e.g. computer/laptop/smartphone/tablet). If you are using a smartphone or tablet, you should turn off your mobile data connectivity or any hotspot connection during this process.

Connect to the Wi-Fi/Wireless network of the Telstra Smart Modem Gen 2 (DJA0231/LH1000) on your computer/laptop/smartphone/tablet. To connect to the Wi-Fi network of the Smart Modem, locate the Wi-Fi network name being broadcast by the modem from your device (e.g. computer/laptop), select this network, then enter the password for this network when prompted.

If you are unsure of the Wi-Fi password, this will be printed on the back/bottom of the Smart Modem.

PLEASE NOTE: YOU DO NOT NEED TO HAVE A WORKING INTERNET CONNECTION TO CONNECT TO THE WI-FI OF THE SMART MODEM OR ACCESS THE MODEM GATEWAY PAGE.

Alternatively, you can plug in an RJ-45 Ethernet cable from your computer or laptop to one of the four (4) yellow LAN ports on the back of the Smart Modem.

Open your web browser (e.g. Google Chrome/Internet Explorer/Mozilla Firefox/Microsoft Edge), enter 10.0.0.138 into the address bar and press Enter.

If this doesn’t work, you can also try and enter the following: 192.168.1.1 or 192.168.0.1

If successful, a login box or window should appear asking for a username and password. Enter admin in the Username field;

Enter Telstra in the Password field. If this doesn’t work, the password will be printed on the bottom of the modem. Enter this password.

Once you have logged in, you will have several options listed across the top of the page. Click ‘Broadband‘

Under the heading PPP Settings, enter your MATE service username in the Username field. This will be in the following format: [email protected]

Your MATE service username would have been emailed to you during the order process.

Under the heading PPP Settings, enter your MATE service password in the Password field. This will be in the following format: 1234567

Your MATE service password would have been emailed to you during the order process.

Click the Apply button.

You now need to plug your Telstra Smart Modem into your telephone wall socket using an RJ-11 telephone cable.

One end of the telephone cable needs to be plugged into the grey DSL port on the back of the modem and the other end into the telephone wall socket in your home.

You will need to wait for the WAN/DSL light on the back of your modem to turn solid – this may take up to 15 minutes. DO NOT UNPLUG THE MODEM DURING THIS TIME.

If the WAN/DSL light does not turn solid after 15 minutes and you have more than one socket in the home, please plug your Smart Modem into any other available telephone sockets in your home, and turn the power on and off once plugged in.

Leave your Smart Modem plugged into each telephone wall socket for up to 15 minutes until the WAN/DSL light on the modem turns solid. The ONLINE light should also turn solid when this occurs.

If the WAN/DSL light on your Smart Modem does not turn solid after 15 minutes and you have tried to connect this on all available telephone wall sockets in your home, please contact our support team for further troubleshooting.
